GPower IO-Link

Connecting LabVIEW and TestStand to IO-Link

io-link-devices-labview-teststand
GPower-io-link-5e6eb2

IO-Link for LabVIEW and TestStand


Are you using sensors, actuators, light towers, pushbuttons, or light grids in your system? Then, you should have a look at GPower IO-Link!  A revolutionary product that enables the use of more than 30,000 IO-Link devices through one universal driver. At the same time, it allows you to use IO-Link plug-and-play.

The driver for LabVIEW and TestStand loads and understands the IODD file – the manufacturer’s description of the IO-Link interface for a given device. Moreover, it provides the user a unique and user-friendly access to more than 30,000 IO-Link devices.

In addition to a standardized and user-friendly interface, the advantage of GPower IO-Link is also that you can add countless sensors to one or more test systems by means of supported IO-Link Masters. In addition, you can connect all your IO-Link devices to LabVIEW or TestStand without having to program a driver yourself.

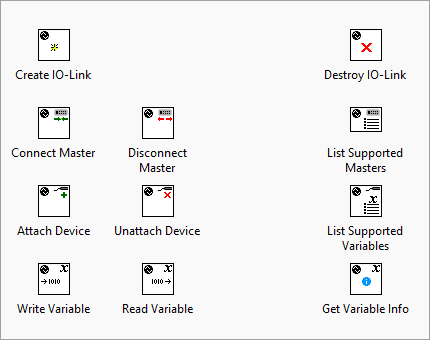

LabVIEW driver for IO-Link Masters

  • LabVIEW driver API with LabVIEW Palette
  • Easy access to all parameters of IO-Link devices thanks to the simple download of IODD files
  • Easy installation using VI Package Manager

IO-Link-Labview-Toolkit-palette

TestStand Step Type for IO-link Masters

  • Easy access to all parameters of IO-Link devices thanks to the simple download of IODD files
  • Direct integration to TestStand variables
  • Easy installation using NI Package Manager

Teststand-io-link

#5steps

Easy and Fast Access to Data

#1

Attach IO-Link Sensor to Master

#2

Download IODD file from https://ioddfinder.io-link.com/#/

#3

Select the IODD file in our LabVIEW driver or TestStand Step Type

#4

Select parameter from list

#5

Read or write data

0
Supported Masters

Supported Masters



Pepperl+Fuchs SE

  • ICE2-8IOL-G65L-V1D
  • ICE2-8IOL-K45P-RJ45
  • ICE2-8IOL-K45S-RJ45
  • ICE3-8IOL-G65L-V1D
  • ICE3-8IOL-K45P-RJ45
  • ICE3-8IOL-K45S-RJ45

COMTROL

  • IOLM 4-EIP
  • IOLM 8-EIP
  • IOLM 8-EIP-L

PHOENIX CONTACT

  • I/O module – IOL MA8 EIP DI8

Baumer

  • IO-Link Master PROFINET (11215447)
  • IO-Link Master PROFINET (11215445)

Carlo Gavazzi

  • YL212CEI8M1IO
  • YL212CPN8M1IO
  • YN115CEI8RPIO
  • YN115CPN8RPIO

Datalogic

  • CBX-8IOL Master

In a Need of Integration Assistance?

Do you need assistance in terms of integrating GPower IO-Link? Since we have developed the driver ourselves, we can easily and quickly handle your system integration needs.
io-link-devices-labview-teststand

Buy or Download the Following Variants

Buy

GPower IO-Link
From 199
  • Connect IO-Link devices to LabVIEW and TestStand
  • Add countless sensors to one or more test systems

Download

Demo Version
Free
  • Full trial
  • Free for 30 days

Buy GPower IO-Link

Choose between...

LabVIEW Runtime

$ 199 Per year
  • IO-Link LabVIEW driver package
  • LabVIEW Runtime support
  • Run applications using the IO-Link driver
  • For LabVIEW 2019 or later

TestStand Runtime

$ 199 Per year
  • Run the IO-Link Custom Step Type
  • LabVIEW Runtime support
  • For TestStand 2016 or later

LabVIEW Development

$ 499 Per year
  • IO-Link LabVIEW driver package
  • LabVIEW Development and Runtime support
  • Build application using the IO-Link driver
  • LabVIEW Driver palette
  • For LabVIEW 2019 or later

TestStand Development

$ 499 Per year
  • Edit IO-Link Parameters in the sequence editor
  • Run the IO-Link Custom Step Type
  • LabVIEW Runtime and Development support
  • For TestStand 2016 or later

Full Package

$ 899 Per year
  • IO-Link LabVIEW Development license
  • IO-Link TestStand Development license

Enterprise

Call us ... for multiple licenses

Download GPower IO-Link

Choose between...



LabVIEW Development

Try a free LabVIEW Development demo version
Free

TestStand Development

Try a free TestStand Development demo version
Free

Buy


Submit the form when purchasing one or more of our products. Please mark what you want to buy and we will send your activation code(s).

    #BUY #IOLINK

    Download


    Want to download a demo? Please, submit the form and we will send your activation code(s).

      #DOWNLOAD #IOLINK

      Want to Know More?

      Want to know more about price and functionality? Call us directly on +45 5190 5790 or submit a form. We will get back to you in 24 hours.
